Product Description

Feature:
1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3.Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic
Printing Machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4.The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
5.From left to right: coil feeding, printing, curing, film cutting, winding a coherent completion .
6.Water-based ink UV ink printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7.Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8.Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9.Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving

Printing sample

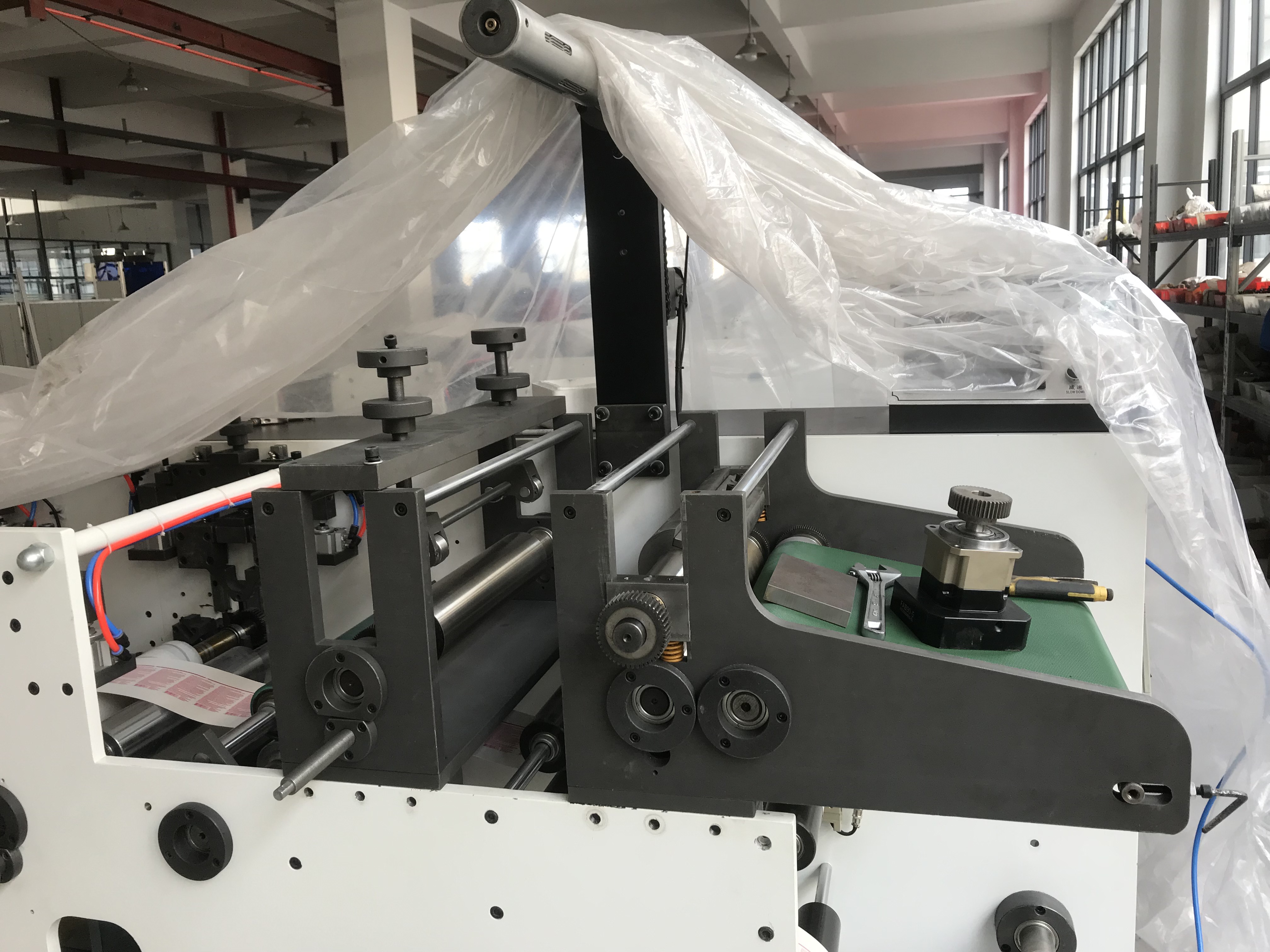

web guide system

sheeting function
Model | RYIN-420 |
Printing number color | 4 color |
Max.printing width | 420mm |
Max.printing girth | 280-1630mm |
Printing speed | 10-80/min |
Max.unwind and rewind diameter | 500mm |
Total Power | 13KW |
3.5Overall dimension | 4.0*1.2*1.2m |


Contact us if you need more details on Flexo Printing Machine Inline. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Paper Cup Printing Press、Paper Bag Printing Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Printing Machine > inline printing machine
